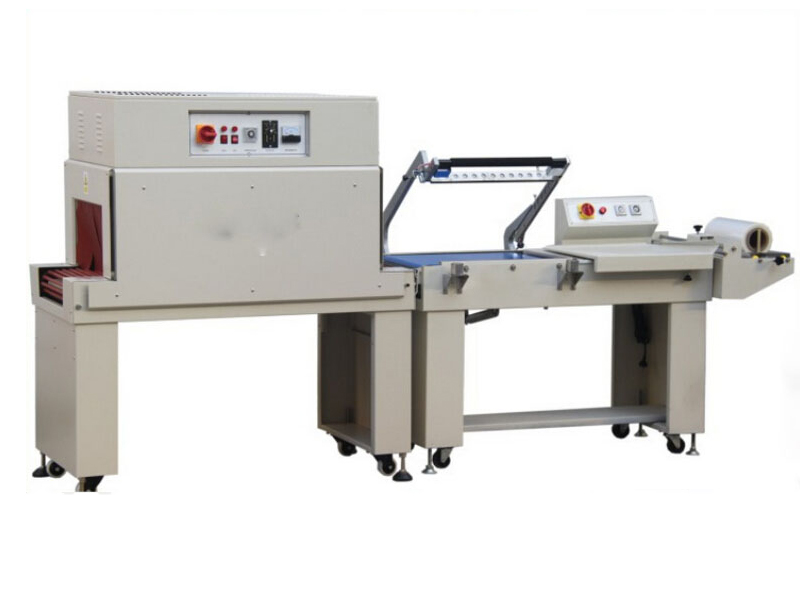

ALD-400 Shrink Wrap Machine
Model: ALD-400
Description
1. ALD-400 shrink packer is an automatic L-type pack and seal machine. It is extensively used to the production line of bulk production and packaging. With an automatic film feeding and punching part, a manual film install system and an adjustable infeed conveyor, this automatic pack and seal machine is highly efficient and it suits a wide range of products with different heights and widths. 2. DuPont Teflon anti-stick and heat-resistant coated aluminum alloy cutter is used to avoid cracking and coking of seal as well as prevent smoke and pollution. 3. ALD-400 shrink packing machine is equipped with imported photoelectric detecting elements, horizontal and vertical detection parts to choose from. Packing and sealing can be easily completed for thin and small packaging products. 4. Automatic feeding. Length of films can be automatically adjusted by combinations of photoelectric eye and calculators. The induction motor of this automatic pack and seal machine helps to automatically roll out waste materials. 5. Easy to adjust the dimensions of packaging products with no need of changing mould and belt making machine. 6. For this ALD-400 shrink packer, products with different sizes can mix to pack for sales promotion. 7. By adopting digital display temperature controller with PID function, extremely sensitive and precise temperature of sealing cutter is achieved and it’s easy to set. Users don’t need to worry about product damages caused by inaccurate temperature and false packaging can be effectively prevented with the automatic protection function of the sealing cutter 8. Sealing parts of this automatic pack and seal machine is equipped with plexiglass covers with automatic alarm function, largely improving the safety of operators.Applications
ALD-400 shrink packing machine applies to shrink wrap of extremely large batch of products in industries like software, food, cosmetics, printing, medicine, tiles, ceramics, drinks, metal, etc.Specifications of
ALD-400 Shrink Packer
Film Feeding System | Motor | Taiwan "Yong-Kun”, steady packaging and film feeding |
Sensor Switch | Japan "OMRON”, accurate control of amount of films | |
Roller | Aluminum alloy rollers with sandblasting and oxidation surface finishing | |
Hole Puncher | Adjustable number of pinholes | |
Conveying System | Conveyor | Non-slip PVC conveyor belt with nylon core |
Motor | Taiwan "Yong-Kun”, steady material feeding | |
Detecting and Positioning |
Japan "OMRON”, high accuracy of material positioning and fast response | |
Enclosed System | Heat Source | Heating pipes which are made of high resistance alloy wires and stainless steel and conform to import standards |
Cutter | DuPont Teflon high temperature spray alloy steel that conforms to import standards | |
Temperature Control | China "EASTSHIP”, digital display temperature controller with high precision and high stability | |
Cutter Protection | Japan "OMRON”, avoid mistaken cutting and protect operating personnel | |
In-place Testing | Korea "AUTONICS”, stable performance and high accuracy | |
Cylinder | Taiwan "Air TAC”, accurate control of sealing speed to ensure sealing quality | |
Magnetic Valve | Taiwan "Air TAC”, stable performance | |
Film-drawing System | Motor | Taiwan "Yong-Kun”, steady packaging and film feeding |
Synchronous Wheel | High-strength wear-resistant aluminum alloy with import standards and sandblasting and oxidation surface finishing | |
Synchronous Belt | Import standards, stable and durable | |
Control System | PLC | China "WECON” |
Touch Screen | China "WECON”, 7-inch LCD screen | |
Intermediate Relay | Japan "OMRON” | |
Power Relay | Japan "OMRON” | |
Chassis | Plastic spraying carbon steel with key parts using stainless steel and aluminum |
Parameters
of ALD-400 Shrink Packer
Model | ALD-400 |
Machine Dimension (mm) | (L) 1685 × (W) 828 × (H) 1480 |
Max. Bag Size (L + H) (mm) |
≤500 (Height) ≤130 ≤500 (Height) ≤130 |
Max. Bag Size (W + H) (mm) | ≤430 (Height) ≤130 |
Max. Sealing Size (L × W) (mm) | (L) 550 × (W) 450 |
Packing Speed | 15 to 25 packs/min |
Net Weight (kg) | 225 |
Power (kW) | 2.5 |
Voltage | 220 V, 50 Hz |
External Air Source (cm) | 6 to 8 |
Applicable Shrink Film | POF |
