ALD-600D Flow Packaging Equipment (HFFS) Flow Packing Machine

Home » Products » Flow Packing Machine » Up-film Flow Packing Machine » ALD-600D Flow Packaging Equipment (HFFS)



Type: High Seal Jaw

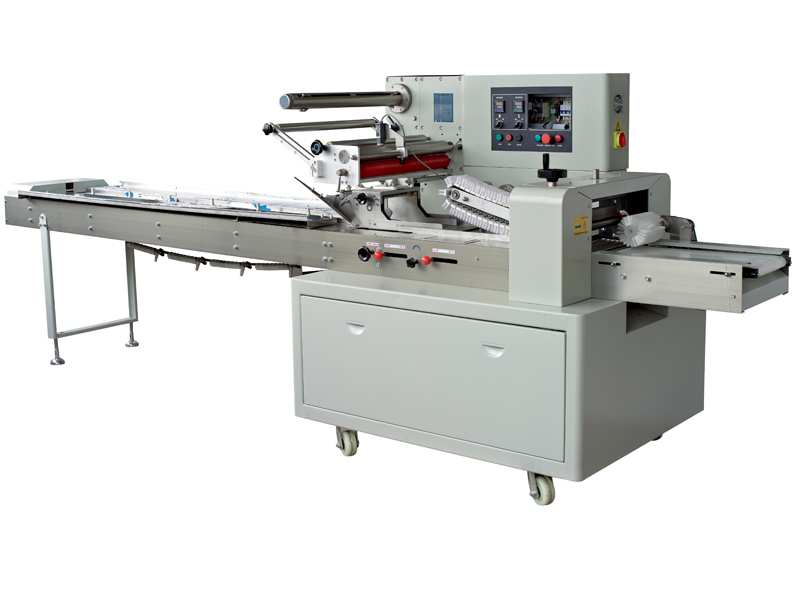

ALD-600D flow packaging equipment is mainly designed to pack various items with regular shape and is suitable for industries like food, hardware, medical products, daily use products, stationary, toys, hotel supplies, electronic products, etc. The new ALD-600D is the result of AOLIDE’s commitment to technological development and innovation. This ongoing process has led to the new ALD-600D as part of the range of flow packaging equipment.

Features of ALD-600D Flow Wrapper with High Seal Jaw

1. Dual motor, Panasonic transducer and PLC controller. Bag length can be set and cut in one step, saving time and packing film. 2. Human machine interface. Parameters are easy and convenient to set. 3. Self diagnosis of failure and clear failure display. 4. High sensitivity optical electric color mark tracking. Digitally input cut position, making the sealing and cutting position more accurate. 5. Separate PID control over temperature, making it more suitable for various packing materials. 6. ALD-600D flow packaging equipment can stop in selected position without sticking to cutters and waste of packing film. 7. Simple drive system to realize more reliable operation and easier maintenance. 8. All the controls are achieved by software, facilitating function adjusting and upgrading. 9. Bag width reaches 250 mm and height comes to 90 mm.

Parameters of ALD-600D Flow Wrapper with High Seal Jaw

Machine Model ALD-600D
Max. Film Width 600 mm
Bag Length (mm) 120 to 450
Bag Width (mm) 50 to 250
Product Height Max. 80 mm
Film Roll Diameter Max. 320 mm
Packing Speed 20 to 80 packs/min
Power 220 V, 50/60 Hz, 3.2 kW
Machine Size (mm) (L) 4380 × (W) 970 × (H) 1500
Machine Weight 870 kg
