ALD-250B Flow Packing Machine (HFFS) Flow Packing Machine

Home » Products » Flow Packing Machine » Up-film Flow Packing Machine » ALD-250B Flow Packing Machine (HFFS)

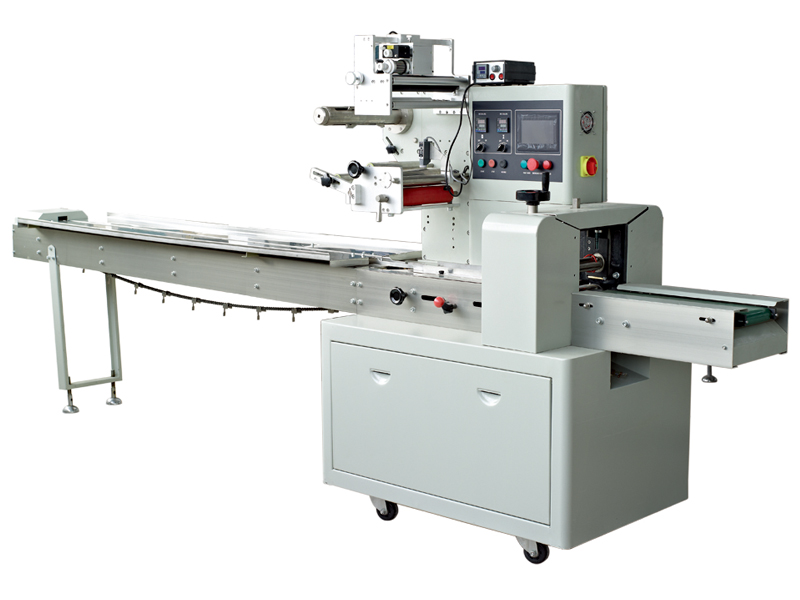

ALD-250B flow packing line is the smallest model of flow wrapping machine and is designed to pack products with small size because of its low seal jaw design. The new ALD-250B is the result of AOLIDE’s commitment to technological development and innovation. This ongoing process has led to the new ALD-250B as part of the range of flow packing lines.


ALD-250B flow wrapper applies to packing various items with regular shapes and in different industries, involving food, hardware, medical products, daily use products, stationary, toys, hotel supplies, electronic products, etc.

Features of ALD-250B Flow Wrapper with Low Seal Jaw

1. Dual motor, Panasonic transducer and PLC controller. Bag length can be set and cut in one step, saving time and packing film. 2. Human machine interface. Parameters of this flow wrapper with low seal jaw are easy and convenient to set. 3. Self diagnosis of failure and clear failure display. 4. High sensitivity optical electric color mark tracking. Digitally input cut position, making the sealing and cutting position more accurate. 5. Separate PID control over temperature, making it more suitable for various packing materials. 6. ALD-250B flow packing line can stop in selected position without sticking to cutters and waste of packing film. 7. Simple drive system to realize more reliable operation and easier maintenance. 8. All the controls are achieved by software, facilitating function adjusting and technical upgrading.

Parameters of ALD-250B Flow Wrapper with Low Seal Jaw

Machine Model ALD-250B
Max. Film Width 250 mm
Bag Length (mm) 65 to 190 120 to 280
Bag Width (mm) 30 to 110
Product Height Max. 40 mm
Film Roll Diameter Max. 320 mm
Packing Speed 40 to 230 packs/min
Power 220 V, 50/60 Hz, 2.4 kW
Machine Size (mm) (L) 3770 × (W) 670 × (H) 1450
Machine Weight 600 kg
