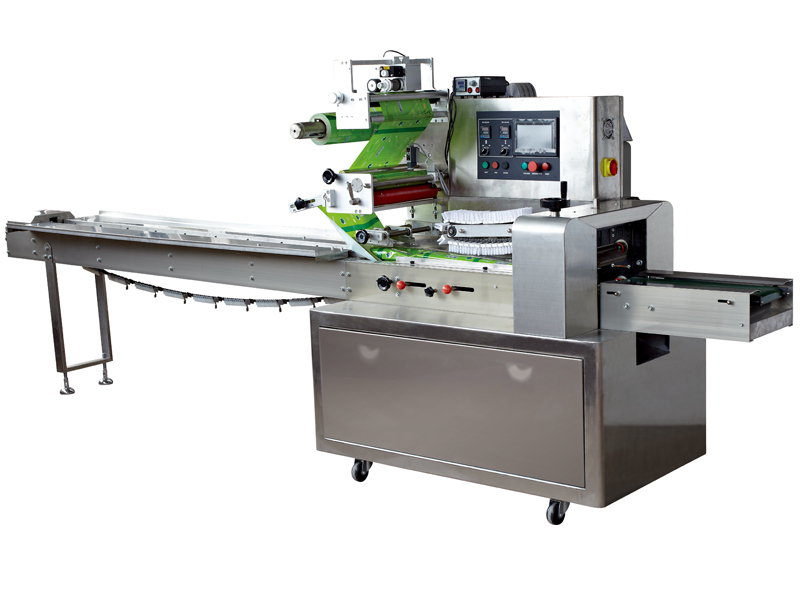

ALD-400D Flow Wrapping Production Line (HFFS) Flow Packing Machine

Home » Products » Flow Packing Machine » Up-film Flow Packing Machine » ALD-400D Flow Wrapping Production Line (HFFS)

Model:

ALD-400D

Type:

High Seal Jaw

Description

ALD-400D flow wrapping production line is suitable for packing various items with regular shape in many industries, like food, hardware, medical products, daily use products, stationary, toys, hotel supplies, electronic products, etc.

The new ALD-400D is the result of AOLIDE’s commitment to technological development and innovation. This ongoing process has led to the new ALD-400D as part of the range of flow wrapping production line.

Features of ALD-400D Horizontal Flow Wrapper with High Seal Jaw

1. Dual motor, Panasonic transducer and PLC controller. Bag length can be set and cut in one step, saving time and packing film. 2. Human machine interface. Parameters are easy and convenient to set. 3. Self diagnosis of failure and clear failure display. 4. High sensitivity optical electric color mark tracking. Digitally input cut position, making the sealing and cutting position more accurate. 5. Separate PID control over temperature, making it more suitable for various packing materials. 6. ALD-450D flow wrapping production line can stop in selected position without sticking to cutters and waste of packing film. 7. Simple drive system to realize more reliable operation and easier maintenance. 8. All the controls are achieved by software, facilitating function adjusting and upgrading. 9. Bag width reaches 170 mm and height comes to 65 mm.

Parameters of ALD-400D Horizontal Flow Wrapper with High Seal Jaw

Machine Model ALD-400D
Max. Film Width 400 mm
Bag Length (mm) 120 to 320
Bag Width (mm) 30 to 170
Product Height Max. 65 mm
Film Roll Diameter Max. 320 mm
Packing Speed 40 to 180 packs/min
Power 220 V, 50/60 Hz, 2.6 kW
Machine Size (mm) (L) 4020 × (W) 800 × (H) 1450
Machine Weight 780 kg
