Model: ALD-320D

Type: High Seal Jaw

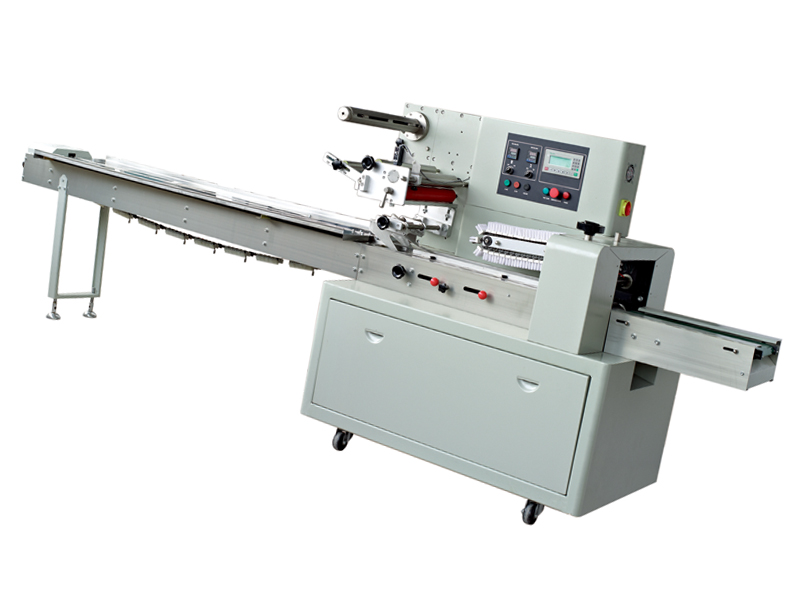

ALD-320D horizontal packer is a little bigger than the smallest size and is valuable in packing larger products of the food industry. Its high seal jaw design is especially suitable for products with certain height. The new ALD-320D is the result of AOLIDE’s commitment to technological development and innovation. This ongoing process has led to the new ALD-320D as part of the range of horizontal packer.

Features of ALD-320D Horizontal Wrapper with High Seal Jaw

1. Dual motor, Panasonic transducer and PLC controller. Bag length can be set and cut in one step, saving time and packing film. 2. Human machine interface. Parameters are easy and convenient to set. 3. Self diagnosis of failure and clear failure display. 4. High sensitivity optical electric color mark tracking. Digitally input cut position, making the sealing and cutting position more accurate. 5. Separate PID control over temperature, making it more suitable for various packing materials. 6. Our horizontal packer can stop in selected position without sticking to cutters and waste of packing film. 7. Simple drive system to realize more reliable operation and easier maintenance. 8. All the controls are achieved by software, facilitating function adjusting and technical upgrading. 9. Bag width reaches 160 mm and height comes to 60 mm.

Parameters ALD-320D Horizontal Wrapper with High Seal Jaw

Machine Model ALD-320D
Max. Film Width 320 mm
Bag Length (mm) 120 to 280 150 to 330
Bag Width (mm) 50 to 160
Product Height Max. 55 mm
Film Roll Diameter Max. 320 mm
Packing Speed 40 to 230 packs/min
Power 220 V, 50/60 Hz, 2.6 kW
Machine Size (mm) (L) 3770 × (W) 720 × (H) 1450
Machine Weight 650 kg
