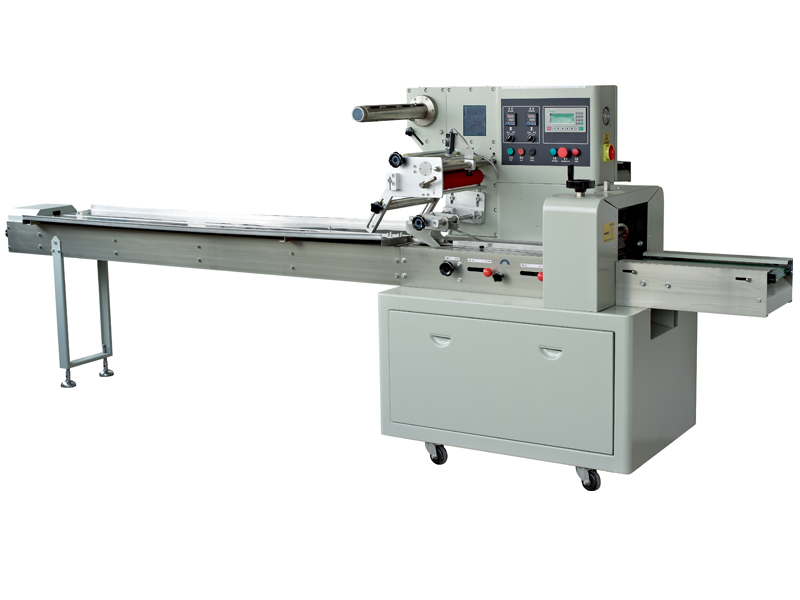

ALD-350B Flow Wrapping Equipment (HFFS) Flow Packing Machine

Home » Products » Flow Packing Machine » Up-film Flow Packing Machine » ALD-350B Flow Wrapping Equipment (HFFS)

Model: ALD-350B

Type: Low Seal Jaw


ALD-350B flow wrapping equipment is designed to pack various items with regular shapes in many industries, like food, hardware, medical products, daily use products, stationary, toys, hotel supplies, electronic products, etc. The new ALD-350B is the result of AOLIDE’s commitment to technological development and innovation. This ongoing process has led to the new ALD-350B as part of the range of flow wrapping equipment.

Features of ALD-350B Flow Wrapper with Low Seal Jaw

1. Dual motor, Panasonic transducer and PLC controller. Bag length can be set and cut in one step, saving time and packing film. 2. Human machine interface. Parameters are easy and convenient to set. 3. Self diagnosis of failure and clear failure display. 4. High sensitivity optical electric color mark tracking. Digitally input cut position, making the sealing and cutting position more accurate. 5. Separate PID control over temperature, making it more suitable for various packing materials. 6. ALD-350B up-film flow wrapping equipment can stop in selected position without sticking to cutters and waste of packing film. 7. Simple drive system to realize more reliable operation and easier maintenance. 8. All the controls are achieved by software, facilitating function adjusting and upgrading. 9. Bag width reaches 160 mm.

Parameters of ALD-350B Flow Wrapper with Low Seal Jaw

Machine Model ALD-350B
Max. Film Width 350 mm
Bag Length (mm) 65 to 190 90 to 260
Bag Width (mm) 50 to 160
Product Height Max. 45 mm
Film Roll Diameter Max. 320 mm
Packing Speed 40 to 230 packs/min
Power 220 V, 50/60 Hz, 2.6 kW
Machine Size (mm) (L) 4020 × (W) 745 × (H) 1450
Machine Weight 700 kg
