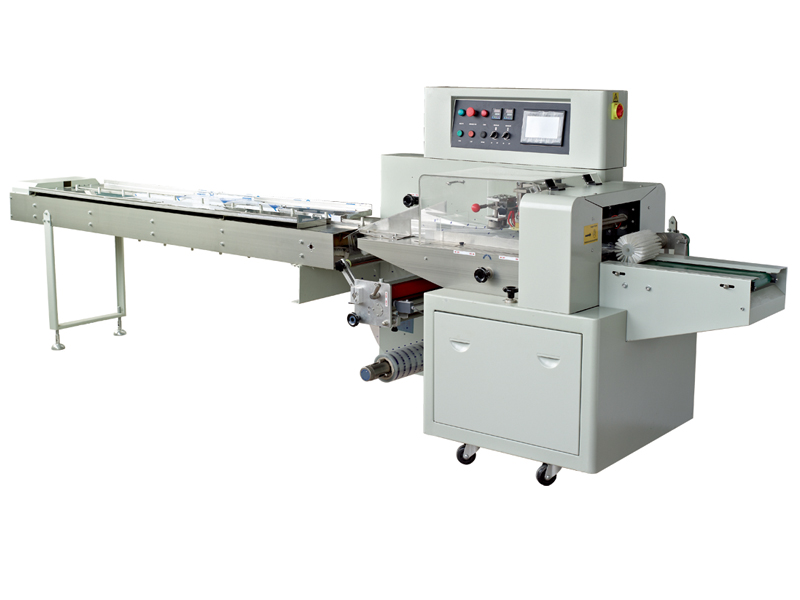

ALD-350XD Flow Packer (HFFS) Flow Packing Machine

Home » Products » Flow Packing Machine » Down-film Flow Packing Machine » ALD-350XD Flow Packer (HFFS)

Model: ALD-350XD

Type: High Seal Jaw

Description

ALD-350XD flow packer is applied to pack various items with regular shapes in many industries, like food, hardware, medical products, daily use products, stationary, toys, hotel supplies, electronic products, etc. The new ALD-350XD is the result of AOLIDE’s commitment to technological development and innovation. This ongoing process has led to the new ALD-350XD as part of the range of flow packing machines.

Features of ALD-350XD Horizontal Flow Wrapper with High Seal Jaw

1. Dual motor, Panasonic transducer and PLC controller. Bag length can be set and cut in one step, saving time and packing film. 2. Human machine interface. Parameters are easy and convenient to set. 3. Self diagnosis of failure and clear failure display. 4. High sensitivity optical electric color mark tracking. Digitally input cut position, making the sealing and cutting position more accurate. 5. Separate PID control over temperature, making it more suitable for various packing materials. 6. ALD-350XD flow packing machine can stop in selected position without sticking to cutters and waste of packing film. 7. Simple drive system to realize more reliable operation and easier maintenance. 8. All the controls are achieved by software, facilitating function adjusting and upgrading.

Parameters of ALD-350XD Horizontal Flow Wrapper with High Seal Jaw

Machine Model ALD-350XD
Max. Film Width 350 mm
Bag Length (mm) 90 to 260 150 to 330
Bag Width (mm) 50 to 160
Product Height Max. 65 mm
Film Roll Diameter Max. 320 mm
Packing Speed 40 to 230 packs/min
Power 220 V, 50/60 Hz, 2.8 kW
Machine Size (mm) (L) 4020 × (W) 720 × (H) 1320
Machine Weight 650 kg
