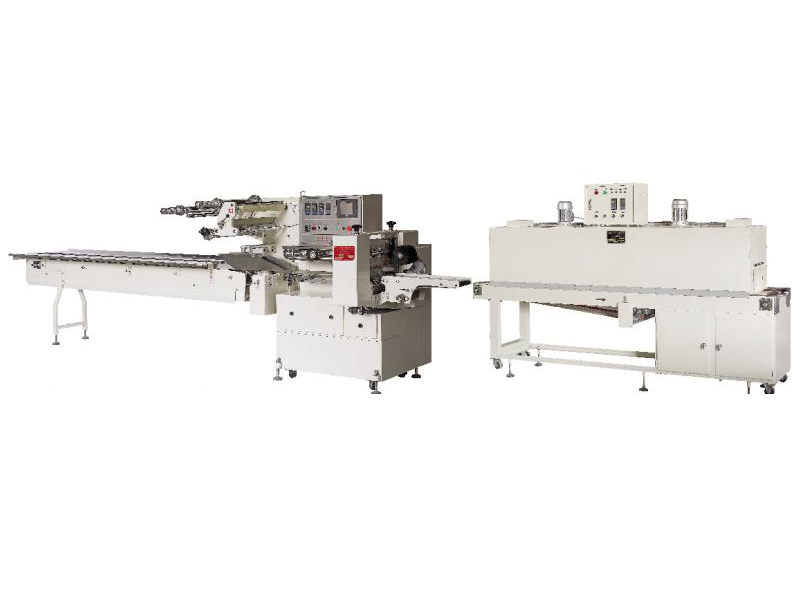

ALD-450A Shrink Wrapping Machine

Home » Products » Shrink Wrap Machine » ALD-450A Shrink Wrapping Machine

Model: ALD-450A

Description

ALD-450A shrink wrapper, developed on the basis of advanced technology and extensive experience, is an automatic high-speed packaging machine that utilizes the latest China low-temperature sealing technology and adopts imported electronic parts.
ALD-450A shrink wrapping machine is characterized by easy to operate, high quality and reliability. It uses frequency control system and infinitely variable speeds system. The whole machine is controlled by PLC, thus reducing failure rate. The heat shrink tunnel with dual temperature area is equipped with infinitely variable speeds system to realize automatic temperature control. Highly efficient heated air circulation assures the quality of shrink wrapping.

Applications of

ALD-450A Shrink Wrapper

This automatic high-speed packaging machine is suitable for unitized packaging of food and beverages as well as skin packaging of noodles, milk tea, mosquito incense, wall paper, exercise books, filters, electric switches, tools, industrial parts and daily cosmetics, etc.

Features of ALD-450A Shrink Wrapper

1. Safe devices are equipped to protect the internal machine. 2. Additional recycling device gives the machine a nice look and helps to save 3%-10% packaging films. 3. Color touch screen control system makes it easy to operate and set parameters. PLC control assures a more stable and reliable system. 4. This automatic high-speed packaging machine can easily and separately set low failure rate, bag length, working speed and temperature with accuracy according to different products. 5. Automatic code printer can be equipped with according to client’s requirement. 6. ALD-600A shrink wrapping machine is equipped with sensitive electric brake control. 7. Circulated and highly effective air and auto temperature control meet the furnace at the high-efficiency heating area, ensuring the quality of shrink packaging.

Features of Shrink Tunnel

1. 2.5 meters long to assure enough time for shrinking. 2. Stainless steel screw heating tube can heat up fast and have great heating effect. 3. Dual heating area and long enough tunnels are utilized to ensure nice-looking package. 4. Temperature is controlled by the meter to achieve high precision. 5. Thicker materials with higher density are used in thermostats to reduce heat consumption.

Specifications of Flow Packing Machine

Model ALD-450A
Max. Film Size ≤ 450 mm
Packing Size (mm) L: 180 to 530
W: 30 to 200
H: 5 to 50
Packing Speed 30 to 150 packs/min
Film Material PVC, POF, OPP, PE
Power (kW) 3.6 + 6.5
Voltage 220 V, 50 Hz
Machine Dimension (mm) 5000 × 1105 × 1750
Machine Weight 1000 kg


Specifications of Shrink Tunnel

Model ALD-2500
Temperature Range (℃) (10 to 300) ± 3
Package Size (mm) (L) 50 to 800 × (W) 1 to 200 × (H) 1 to 200
Linear Speed (m/min) 5 to 30 m/min
Heating Power 1 × 15 kW
Main Motor Power 0.37 kW
Fan Motor Power 2 × 0.37 kW
Voltage 380 V, 50 Hz
Tunnel Weight 800 kg
Tunnel Dimension (mm) (L) 2500 × (W) 600 × (H) 1600
