ALD-600A Shrink Packaging Machine

Home » Products » Shrink Wrap Machine » ALD-600A Shrink Packaging Machine

Model: ALD-600A

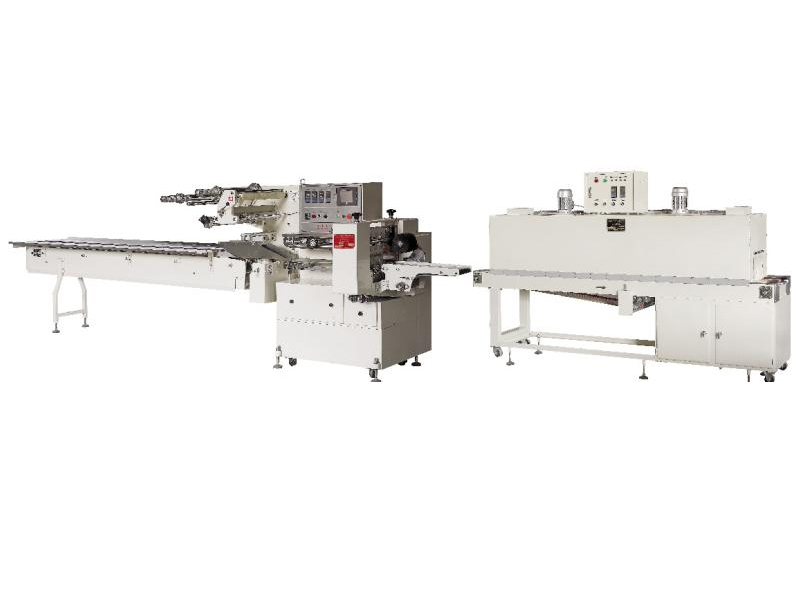

ALD-600A shrink packaging machine, developed on the basis of sophisticated technology and a wealth of experience, is an automatic high-speed packaging line that adopts the latest China low-temperature sealing technology and uses imported electronic parts.
The main characteristics of ALD-600A shrink packaging machine are easy to operate, high quality and reliability. It adopts frequency control system and infinitely variable speeds system. The whole machine is controlled by PLC, thus reducing failure rate. The heat shrink tunnel with dual temperature area adopts infinitely variable speeds system to realize automatic temperature control. Highly efficient heated air circulation assures the quality of shrink wrapping.

Applications of ALD-600A Shrink Packaging Machine

This automatic high-speed packaging line is especially used for unitized packaging of food and beverages as well as skin packaging of noodles, milk tea, mosquito incense, wall paper, exercise books, filters, electric switches, tools, industrial parts and daily cosmetics, etc.

Features of ALD-600A Shrink Packaging Machine

1. Safe devices are equipped to protect the internal machine. 2. Additional recycling device gives the machine a nice look and helps to save 3%-10% packaging films. 3. Color touch screen control system makes it easy to operate and set parameters. PLC control assures a more stable and reliable system. 4. This automatic high-speed packaging line can easily and separately set low failure rate, bag length, working speed and temperature with accuracy according to different products. 5. Automatic code printer can be equipped with according to client’s requirement. 6. Our shrink packaging machine is equipped with sensitive electric brake control. 7. Circulated and highly effective air and auto temperature control meet the furnace at the high-efficiency heating area, ensuring the quality of shrink packaging.

Features of Shrink Tunnel

1. 2.5 meters long to assure enough time for shrinking. 2. Stainless steel screw heating tube can heat up fast and have great heating effect. 3. Dual heating area and long enough tunnels are utilized to ensure nice-looking package. 4. Temperature is controlled by the meter to achieve high precision. 5. Thicker materials with higher density are used in thermostats to reduce heat consumption.

Specifications of Flow Packing Machine



Max. Film Size ≤ 600 mm
Bag Size (mm) L: 180 to 530
W: 50 to 220
H: 10 to 70
Packing Speed 30 to 150 packs/min
Film Material PVC, POF, OPP, PE
Power (kW) 3.8 + 16.5
Voltage 220 V, 50 Hz
Machine Dimension (mm) (L) 5000 × (W) 1105 × (H) 1750
Machine Weight 1000 kg

Specifications of Shrink Tunnel

Model ALD-2500
Temperature Range (℃) (10 to 300) ± 3
Bag Size (mm) (L) 50 to 800 × (W) 1 to 200 × (H) 1 to 200
Linear Speed (m/min) 5 to 30
Heating Power 1 × 15 kW
Main Motor Power 0.37 kW
Fan Motor Power 2 × 0.37 kW
Voltage 380 V, 50 Hz
Tunnel Weight 800 kg
Tunnel Dimension (mm) (L) 2500 × (W) 600 × (H) 1600
