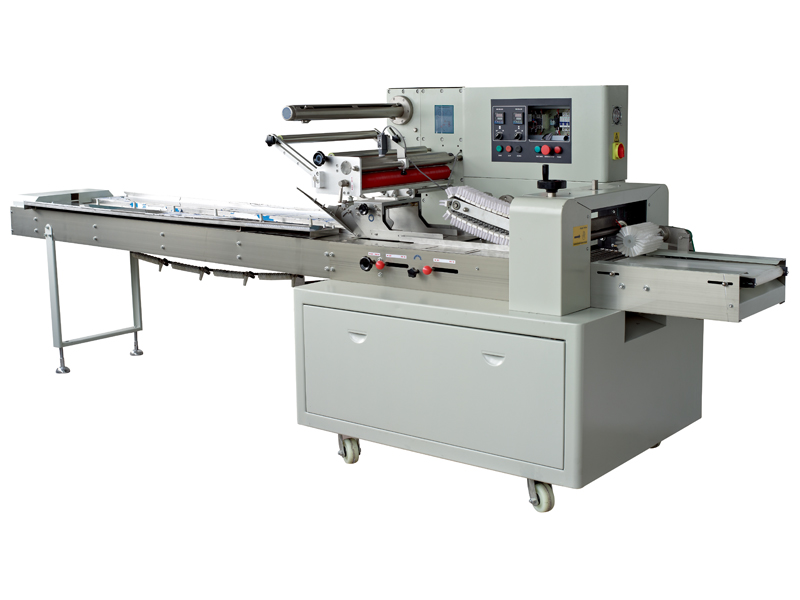

ALD-700D Flow Packaging Machine (HFFS) Flow Packing Machine

Home » Products » Flow Packing Machine » Up-film Flow Packing Machine » ALD-700D Flow Packaging Machine (HFFS)

Model: ALD-700D

Type: High Seal Jaw


ALD-700D flow packaging machine is utilized to pack various items with regular shape in industries like food, hardware, medical products, daily use products, stationary, toys, hotel supplies, electronic products, etc.

Features of ALD-700D Flow Wrapping Equipment with High Seal Jaw

1. Dual motor, Panasonic transducer and PLC controller. Bag length can be set and cut in one step, saving time and packing film. 2. Human machine interface. Parameters are easy and convenient to set. 3. Self diagnosis of failure and clear failure display. 4. High sensitivity optical electric color mark tracking. Digitally input cut position, making the sealing and cutting position more accurate. 5. Separate PID control over temperature, making it more suitable for various packing materials. 6. ALD-700D flow packaging machine can stop in selected position without sticking to cutters and waste of packing film. 7. Simple drive system to realize more reliable operation and easier maintenance. 8. All the controls are achieved by software, facilitating function adjusting and technical upgrading. 9. Bag width reaches 300 mm and height comes to 90 mm.

Parameters of ALD-700D Flow Wrapping Equipment with High Seal Jaw

Machine Model ALD-700D
Max. Film Width 700 mm
Bag Length (mm) 120 to 450
Bag Width (mm) 50 to 300
Product Height Max. 80 mm
Film Roll Diameter Max. 320 mm
Packing Speed 20 to 80 packs/min
Power 220 V, 50/60 Hz, 3.2 kW
Machine Size (mm) (L) 4480 × (W) 980 × (H) 1510
Machine Weight 1170 kg
